Design a system which levied taxes/penalties on drivers and riders with some constraints like completing 10 rides a month or getting lesser than average rating of that area consistently

Let's look into FR

May 20, 2025

1.The system should support registration and management of two user types: drivers and riders.
2.Each user should have a unique profile containing their ride history, ratings, and location metadata.

3.The system should track each completed ride, associating it with both the driver and the rider.

4.Each ride record should include:

Timestamp
Location (pickup and drop)
Driver ID
Rider ID
Rating given by rider and driver
Duration and distance

5.The system should compute and store:

Number of rides per user (monthly basis)
Average rating per user over a sliding window (e.g., last 5 rides or monthly)
Area-wise average rating

6.The system should regularly update area-wise aggregate statistics (e.g., daily or hourly).

7.The system should define constraints/rules, such as:

Drivers completing fewer than 10 rides/month
Riders giving ratings significantly lower than the local average
Drivers consistently getting below-average ratings in an area

8.The system should evaluate these constraints periodically (e.g., daily, weekly, monthly).

9.Rules should be configurable so new policies can be added without redeploying the service.

10.When a rule is violated, the system should:

Automatically calculate the penalty amount
Associate it with the violating user

11.Users should be notified about:

Why they are penalized (rule violated, stats)
The amount and due date

NFR

1.System should be highly scalable to support scaling horizontally to handle increasing numbers of users, rides, and evaluations.

2.The system should maintain 99.9% uptime as it deals with critical billing and penalties that affect user trust and revenue.

3.Ride recording and rating submissions should happen with sub-second latency.

4.The system must ensure strong consistency for:

Ride counts per user per month
Average rating calculations

5.The system should be fault tolerant to individual service or node failures.

Estimates

Active cities           = 100
Active drivers          = 1 million
Active riders           = 10 million
Daily rides             = 5 million
Avg ride duration       = 20 minutes
Ratings per ride        = 2 (rider → driver & driver → rider)
Evaluation frequency    = Daily batch
Evaluation window       = 30 days

Ride data Storage

Per ride size:
- Ride metadata: ~500 bytes
- Ratings (2x): ~100 bytes
- Total per ride: ~600 bytes

Daily:
5M rides × 600B = 3 GB/day

Monthly (raw): 90 GB
With overhead (×2): ~180 GB/month

🧮 2. Rating Aggregation & Rule Evaluation

Users to evaluate: 1M drivers + 10M riders = 11M users
Rules per user: 3

Total rule evaluations/day:
11M × 3 = 33M evaluations

If system supports 10k eval/sec:
33M / 10k = ~3,300 sec ≈ 55 minutes (can be parallelized)

API’s

1. User & Ride APIs

`GET /users/{userId}/summary`

Description: Fetch ride count, average rating, and penalty summary for a user.

{
  "userId": "user_123",
  "userType": "driver",
  "monthlyRideCount": 12,
  "averageRating": 4.2,
  "areaAverageRating": 4.5,
  "penalties": [
    {
      "penaltyId": "pen_001",
      "amount": 100,
      "reason": "Low rating",
      "status": "UNPAID"
    }
  ]
}

2.POST /rides/complete

Description: Submit a completed ride record.

request {
  "rideId": "ride_789",
  "driverId": "user_123",
  "riderId": "user_456",
  "startTime": "2025-05-19T10:00:00Z",
  "endTime": "2025-05-19T10:20:00Z",
  "pickupLocation": "City Center",
  "dropLocation": "Airport"
}
response { "status": "success" }

3.POST /ratings/submit

Description: Submit a rating after a ride

request {
  "rideId": "ride_789",
  "fromUserId": "user_456",
  "toUserId": "user_123",
  "rating": 3.5
}
response { "status": "success" }

Rule Evaluation APIs

`POST /rules/evaluate`

Description: Trigger rule evaluation for a given user or batch.

request {
  "userIds": ["user_123", "user_456"],
  "evaluationDate": "2025-05-19"
}
response {
  "evaluated": 2,
  "penaltiesIssued": 1
}

`GET /rules/violations?userId=user_123`

Description: Get detailed rule violations for a user.

[
  {
    "ruleId": "rule_001",
    "ruleName": "Low Monthly Ride Count",
    "violated": true,
    "details": {
      "monthlyRides": 6,
      "threshold": 10
    }
  }
]

3. Penalty Management APIs

`GET /penalties?userId=user_123`

Description: List all penalties for a user.

[
  {
    "penaltyId": "pen_001",
    "amount": 100,
    "reason": "Low rating",
    "status": "UNPAID",
    "issuedAt": "2025-05-01T10:00:00Z"
  }
]

`POST /penalties/pay`

Description: Mark a penalty as paid (or initiate payment).
Request:

{
  "penaltyId": "pen_001",
  "paymentMethod": "wallet"
}
response { "status": "paid" }

4. Admin APIs

`POST /admin/rules`

Description: Create or update a penalty rule.
Request:

request {
  "ruleId": "rule_001",
  "name": "Low Monthly Ride Count",
  "description": "Penalty if less than 10 rides in a month",
  "userType": "driver",
  "threshold": 10,
  "penaltyAmount": 100,
  "active": true
}

`POST /admin/penalties/waive`

Description: Admin waives a penalty.

request {
  "penaltyId": "pen_001",
  "reason": "Verified dispute"
}

Databases

| Purpose                       | Database Type                                           | Why?                                                            |
| ----------------------------- | ------------------------------------------------------- | --------------------------------------------------------------- |
| Core transactional data       | **Relational DB (SQL)** like PostgreSQL or MySQL        | Strong consistency, relational joins (users, rides, penalties)  |
| Fast access to computed stats | **In-Memory Store** like Redis                          | Quick access to pre-aggregated metrics (monthly rides, ratings) |
| Rule evaluation & logs        | **Document DB** like MongoDB or **NoSQL** like DynamoDB | Flexible schema, fast inserts, scalable                         |
| Analytics & reporting         | **Data warehouse** like BigQuery, Redshift              | Complex queries, aggregations, dashboards                       |
| Archival storage              | **Object Store** like Amazon S3                         | Cost-effective long-term data retention                         |

🗂️ Schema Design (Relational)

1. `users`

CREATE TABLE users (
  user_id VARCHAR PRIMARY KEY,
  name TEXT,
  user_type ENUM('driver', 'rider'),
  city TEXT,
  created_at TIMESTAMP
);

2. rides

CREATE TABLE rides (
  ride_id VARCHAR PRIMARY KEY,
  driver_id VARCHAR REFERENCES users(user_id),
  rider_id VARCHAR REFERENCES users(user_id),
  start_time TIMESTAMP,
  end_time TIMESTAMP,
  pickup_location TEXT,
  drop_location TEXT
);

3. ratings

CREATE TABLE ratings (
  rating_id SERIAL PRIMARY KEY,
  ride_id VARCHAR REFERENCES rides(ride_id),
  from_user_id VARCHAR REFERENCES users(user_id),
  to_user_id VARCHAR REFERENCES users(user_id),
  rating FLOAT CHECK (rating >= 1.0 AND rating <= 5.0),
  created_at TIMESTAMP
);

4. rules

CREATE TABLE rules (
  rule_id VARCHAR PRIMARY KEY,
  rule_name TEXT,
  user_type ENUM('driver', 'rider'),
  metric TEXT,              -- e.g. "monthly_rides", "rating_vs_area"
  threshold FLOAT,
  penalty_amount INT,
  description TEXT,
  active BOOLEAN,
  created_at TIMESTAMP
);

5. penalties

CREATE TABLE penalties (
  penalty_id VARCHAR PRIMARY KEY,
  user_id VARCHAR REFERENCES users(user_id),
  rule_id VARCHAR REFERENCES rules(rule_id),
  amount INT,
  status ENUM('UNPAID', 'PAID', 'WAIVED'),
  issued_at TIMESTAMP,
  paid_at TIMESTAMP
);

6. area_metrics (for fast comparison with area averages)

CREATE TABLE area_metrics (
  city TEXT,
  user_type ENUM('driver', 'rider'),
  metric TEXT,            -- e.g. "avg_rating"
  value FLOAT,
  computed_at TIMESTAMP,
  PRIMARY KEY (city, user_type, metric)
);

7. rule_violations (optional audit)

CREATE TABLE rule_violations (
  violation_id SERIAL PRIMARY KEY,
  user_id VARCHAR,
  rule_id VARCHAR,
  evaluated_at TIMESTAMP,
  violated BOOLEAN,
  details JSONB
);

Redis Caches (Examples)

monthly_rides:user:{user_id} → INT (rides in current month)
avg_rating:user:{user_id} → FLOAT (recent rolling average)
area_avg_rating:city:{city} → FLOAT (periodically refreshed)

🧠 Optimization Tips

Use materialized views or scheduled jobs to pre-aggregate monthly ride counts and ratings.
Shard large tables like rides, ratings, penalties by user ID for scalability.
Partition rides and ratings by date for better performance.
Use Kafka or CDC pipelines to sync transactional data to warehouse for analytics.

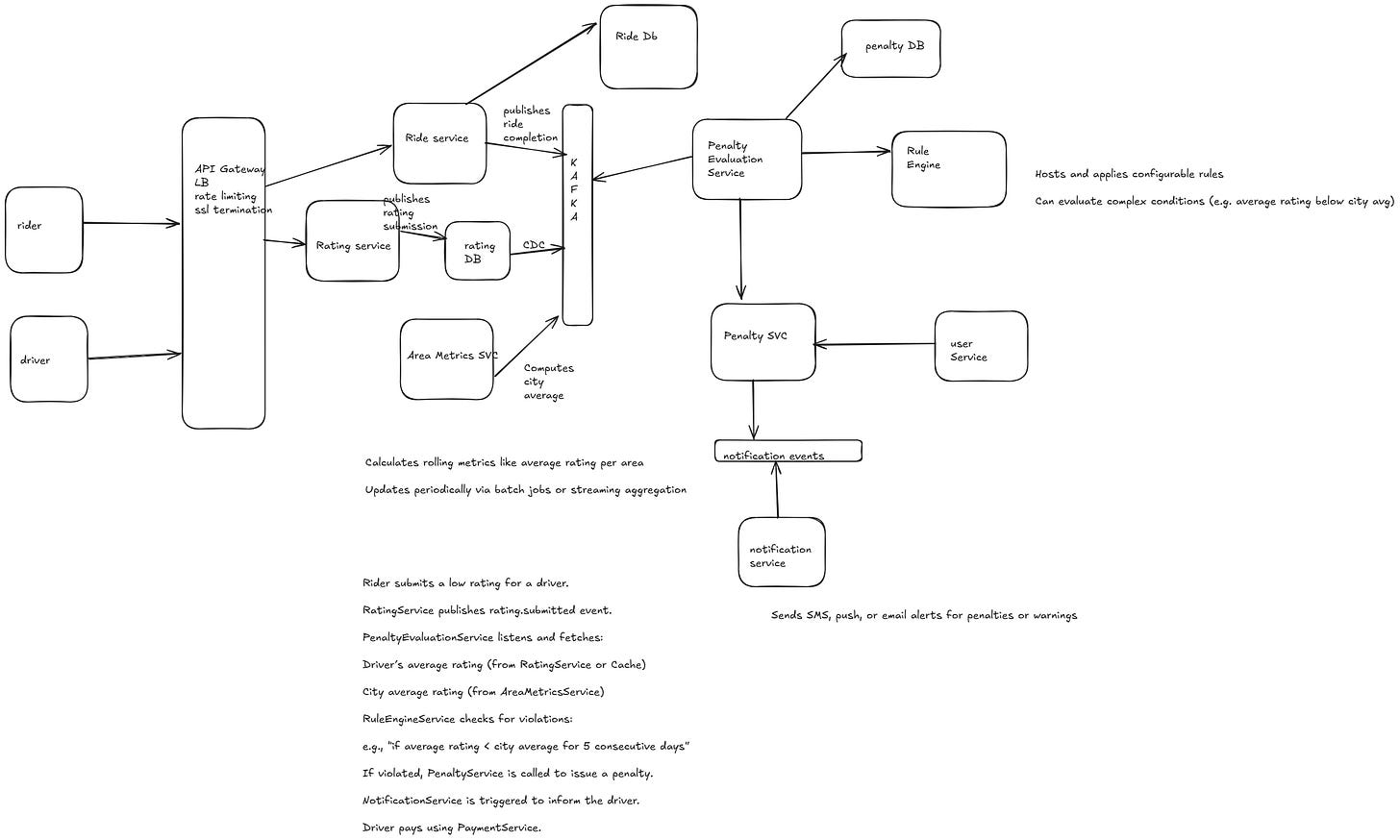

HLD

🧩 Microservices Overview

1. User Service

Manages user profiles (drivers/riders)
Exposes user metadata for penalties and evaluation

2. Ride Service

Stores ride history, ride metadata
Publishes ride completion events

3. Rating Service

Manages post-ride ratings
Publishes rating submission events

4. Penalty Evaluation Service

Evaluates rule violations for each user
Consumes events from Ride and Rating Services
Issues penalties via Penalty Service

5. Penalty Service

Stores, tracks, and manages penalty records
Sends notifications to users
Interfaces with Payment Service for penalty payments

6. Rule Engine Service

Hosts and applies configurable rules
Can evaluate complex conditions (e.g. average rating below city avg)

7. Notification Service

Sends SMS, push, or email alerts for penalties or warnings

8. Area Metrics Service

Calculates rolling metrics like average rating per area
Updates periodically via batch jobs or streaming aggregation

9. Admin Service

Allows admins to configure rules, waive penalties, or audit data

10. Payment Service

Handles penalty fee payments
Integrates with wallets/cards/etc

  +------------------+        +-----------------+       +-------------------+
  |   Ride Service   | ---->  | Rating Service  | --->  | Area Metrics Svc  |
  +------------------+        +-----------------+       +-------------------+
            |                        |                          |
            v                        v                          |
       Publishes Ride        Publishes Rating           Computes City Avg
        Completion               Submission               (Batch/Stream)
            |                        |                          |
            v                        v                          v
    +--------------------------------------------+
    |         Penalty Evaluation Service         |
    +--------------------------------------------+
            |        |               |
            |        |               v
            |        |        +--------------+
            |        +------> | Rule Engine  | <------ Admin
            |                 +--------------+
            v
    +----------------+              +------------------+
    | Penalty Svc    | <----------> | User Service     |
    +----------------+              +------------------+
            |
            v
   +------------------+       +-------------------+
   | Notification Svc |       | Payment Service   |
   +------------------+       +-------------------+

🛰️ Asynchronous Communication

Used where event-driven flow is appropriate (via Kafka, SQS, etc.)

RideService → ride.completed → PenaltyEvaluation
RatingService → rating.submitted → PenaltyEvaluation
AreaMetrics → area.rating.updated → RuleEngine

📬 Synchronous APIs (REST/gRPC)

Used for:

Admin operations
Fetching penalty details
Paying penalties
Querying user history

⚙️ Example Flow: Apply Penalty for Low Ratings

Rider submits a low rating for a driver.
RatingService publishes rating.submitted event.
PenaltyEvaluationService listens and fetches:
- Driver’s average rating (from RatingService or Cache)
- City average rating (from AreaMetricsService)
RuleEngineService checks for violations:
- e.g., “if average rating < city average for 5 consecutive days”
If violated, PenaltyService is called to issue a penalty.
NotificationService is triggered to inform the driver.
Driver pays using PaymentService.
