Designing a Payment Aggregator with a high transaction success rate involves handling multiple Payment Service Providers (PSPs), optimizing routing, retry mechanisms, and fault tolerance.

Let's look into FR

Shashank Mishra

Jun 12, 2025

1.Merchants can register and integrate with the aggregator.

2.Each merchant has configuration for supported PSPs, routing preferences, and SLAs.

3.Support for multiple PSPs (Razorpay, PayU, Stripe, etc.).

4.PSP configurations stored with credentials, priority, and status.

5.Expose a secure API for initiating payments.

6.Dynamically select the PSP based on:

PSP success rate (historical & real-time).
Type of payment (card, UPI, netbanking).
Merchant preferences.
Geo/IP or BIN-based mapping.
PSP latency/availability

7.Limit retries to avoid multiple charge attempts.

8.Handle asynchronous responses from PSPs.

9.Notify merchants on transaction status updates.

NFR

1.End-to-end transaction time ≤ 2 seconds (preferred).

2.System should be highly available

3.PSP routing and retries should be completed within acceptable customer wait time (~5 seconds max).

4.Maintain real-time metrics per PSP (success %, failure reason).

5.System should be highly scalable

6.PCI-DSS Compliance for card data.

7.Encrypt all sensitive data (in transit and at rest).

API’s

Here are the core APIs for a Payment Aggregator System that ensures high transaction success rates. These are grouped based on use cases: merchant onboarding, payment processing, routing logic, and reconciliation.

1.POST /api/v1/merchants

Register a new merchant.

Request:
{
  "merchant_name": "ShopifyX",
  "contact_email": "support@shopifyx.com",
  "callback_url": "https://shopifyx.com/payment-callback"
}

Response:
{
  "merchant_id": "m_123456",
  "api_key": "abc123xyz"
}

2.GET /api/v1/merchants/{merchant_id}

Get merchant details

3.PATCH /api/v1/merchants/{merchant_id}/psp-config

Configure PSP preferences per merchant

{
  "preferred_psps": ["razorpay", "payu"],
  "fallback_psps": ["stripe"],
  "psp_weights": {
    "razorpay": 70,
    "payu": 30
  }
}

4.POST /api/v1/payments/initiate

Initiate a payment

Request:
{
  "merchant_id": "m_123456",
  "order_id": "ORD_98765",
  "amount": 799.00,
  "currency": "INR",
  "payment_method": "card",
  "card_info": {
    "number": "4111111111111111",
    "expiry": "12/26",
    "cvv": "123"
  },
  "customer_info": {
    "email": "user@example.com",
    "phone": "+919000000000"
  },
  "redirect_url": "https://shopifyx.com/order-complete"
}

Response:
{
  "transaction_id": "txn_abc123",
  "redirect_url": "https://payment.aggregator.com/checkout/txn_abc123"
}

5.GET /api/v1/payments/{transaction_id}/status

Get current status of a transaction

Response:
{
  "transaction_id": "txn_abc123",
  "status": "SUCCESS",
  "psp_used": "razorpay",
  "payment_method": "card",
  "amount": 799.00,
  "completed_at": "2025-06-08T18:12:00Z"
}

`6.POST /api/v1/payments/webhook`

Handle PSP callback/webhook

Request (from PSP):
{
  "transaction_id": "txn_abc123",
  "status": "SUCCESS",
  "psp_transaction_id": "rzp_txn_0009",
  "auth_code": "AUTH456"
}

7.POST /api/v1/payments/{transaction_id}/retry

Manually trigger a retry (optional)

{
  "retry_reason": "network_error"
}

`8.GET /api/v1/routing/suggestion`

Get routing suggestion (internal use)

Request:
{
  "merchant_id": "m_123456",
  "payment_method": "card",
  "bin": "411111",
  "geo": "IN"
}

Response:
{
  "psp": "payu",
  "reason": "higher success rate for BIN 411111 in IN"
}

9.GET /api/v1/settlements

Fetch settlement report per merchant

Query:
?merchant_id=m_123456&date=2025-06-07

Response:
{
  "settled": true,
  "transactions": [
    {
      "transaction_id": "txn_abc123",
      "amount": 799.00,
      "status": "SUCCESS",
      "settled_on": "2025-06-08T04:00:00Z"
    }
  ]
}

10.GET /api/v1/transactions

Search transactions

Query:
?merchant_id=m_123456&status=FAILED&from=2025-06-01&to=2025-06-07

11.POST /api/v1/admin/psps

Add or update PSP integration

{
  "psp_name": "cashfree",
  "api_endpoint": "https://api.cashfree.com/v1/payment",
  "success_rate": 0.97,
  "status": "active"
}

`GET /api/v1/admin/psps/health`

Check real-time health & performance of all PSPs

Databases and Schema

| Component                  | Recommended DB         | Why?                                |
| -------------------------- | ---------------------- | ----------------------------------- |
| Core transactional data    | **PostgreSQL / MySQL** | Strong consistency, relational      |
| Routing intelligence       | **Redis / DynamoDB**   | Fast access, TTL for real-time data |
| Analytics, success rates   | **ClickHouse / Druid** | OLAP + high ingestion + query perf  |
| Logging & audit trail      | **MongoDB / Elastic**  | Flexible schema, fast ingestion     |
| PSP config, merchant prefs | **PostgreSQL / etcd**  | Structured, transactional config    |

✅ 1. merchants Table

CREATE TABLE merchants (
    merchant_id UUID PRIMARY KEY,
    name VARCHAR(255),
    contact_email VARCHAR(255),
    callback_url TEXT,
    api_key TEXT UNIQUE,
    created_at TIMESTAMP DEFAULT now()
);

✅ 2. `merchant_psp_config`

Merchant-specific preferences and routing weights.

CREATE TABLE merchant_psp_config (
    merchant_id UUID REFERENCES merchants(merchant_id),
    psp_name VARCHAR(50),
    weight INT, -- weight in routing decisions
    priority INT, -- fallback order
    enabled BOOLEAN DEFAULT TRUE,
    PRIMARY KEY (merchant_id, psp_name)
);

✅ 3. `transactions` Table

Main transactional store — strongly consistent.

CREATE TABLE transactions (
    transaction_id UUID PRIMARY KEY,
    merchant_id UUID REFERENCES merchants(merchant_id),
    order_id VARCHAR(100),
    amount DECIMAL(10,2),
    currency CHAR(3),
    payment_method VARCHAR(50),
    psp_used VARCHAR(50),
    status VARCHAR(20), -- PENDING, SUCCESS, FAILED
    failure_reason TEXT,
    started_at TIMESTAMP,
    completed_at TIMESTAMP,
    retry_count INT DEFAULT 0
);
CREATE INDEX idx_merchant_order ON transactions(merchant_id, order_id);

✅ 4. `psp_metrics` (Real-time stats store, e.g., Redis or DynamoDB)

Used for intelligent routing decisions.

Key: "psp:razorpay"
Value:
{
  "success_rate_1min": 0.93,
  "success_rate_5min": 0.91,
  "latency_avg": 300,   // in ms
  "last_failure": "Bank timeout",
  "updated_at": "2025-06-08T17:00:00Z"
}

TTL of 10–15 minutes for metrics
Sliding window logic using Redis Sorted Sets or streaming pipeline

✅ 5. payment_methods Table (Optional reference)

CREATE TABLE payment_methods (
    method_id SERIAL PRIMARY KEY,
    name VARCHAR(50), -- card, upi, netbanking, etc.
    type VARCHAR(50), -- offline, realtime
    enabled BOOLEAN DEFAULT TRUE
);

✅ 6. `psps` Table

Stores all supported PSPs and their configs.

CREATE TABLE psps (
    psp_name VARCHAR(50) PRIMARY KEY,
    api_endpoint TEXT,
    status VARCHAR(20), -- active, down, maintenance
    priority INT,
    default_weight INT,
    success_rate_estimate FLOAT,
    created_at TIMESTAMP
);

✅ 7. webhook_logs (MongoDB or PostgreSQL)

{
  "transaction_id": "txn_abc123",
  "psp": "razorpay",
  "status": "SUCCESS",
  "payload": {...},
  "received_at": "2025-06-08T18:12:00Z"
}

✅ 9. settlements Table

CREATE TABLE settlements (
    settlement_id UUID PRIMARY KEY,
    transaction_id UUID REFERENCES transactions(transaction_id),
    merchant_id UUID,
    settled_amount DECIMAL(10,2),
    settled_on TIMESTAMP,
    status VARCHAR(20) -- PENDING, SETTLED
);

🔁 TTL and Cleanup Strategy

Redis keys for PSP metrics: TTL = 10 min
Audit & logs in Elastic/Mongo: TTL = 30 days (configurable)
Archived transactions: Partitioned table or moved to cold storage monthly

HLD

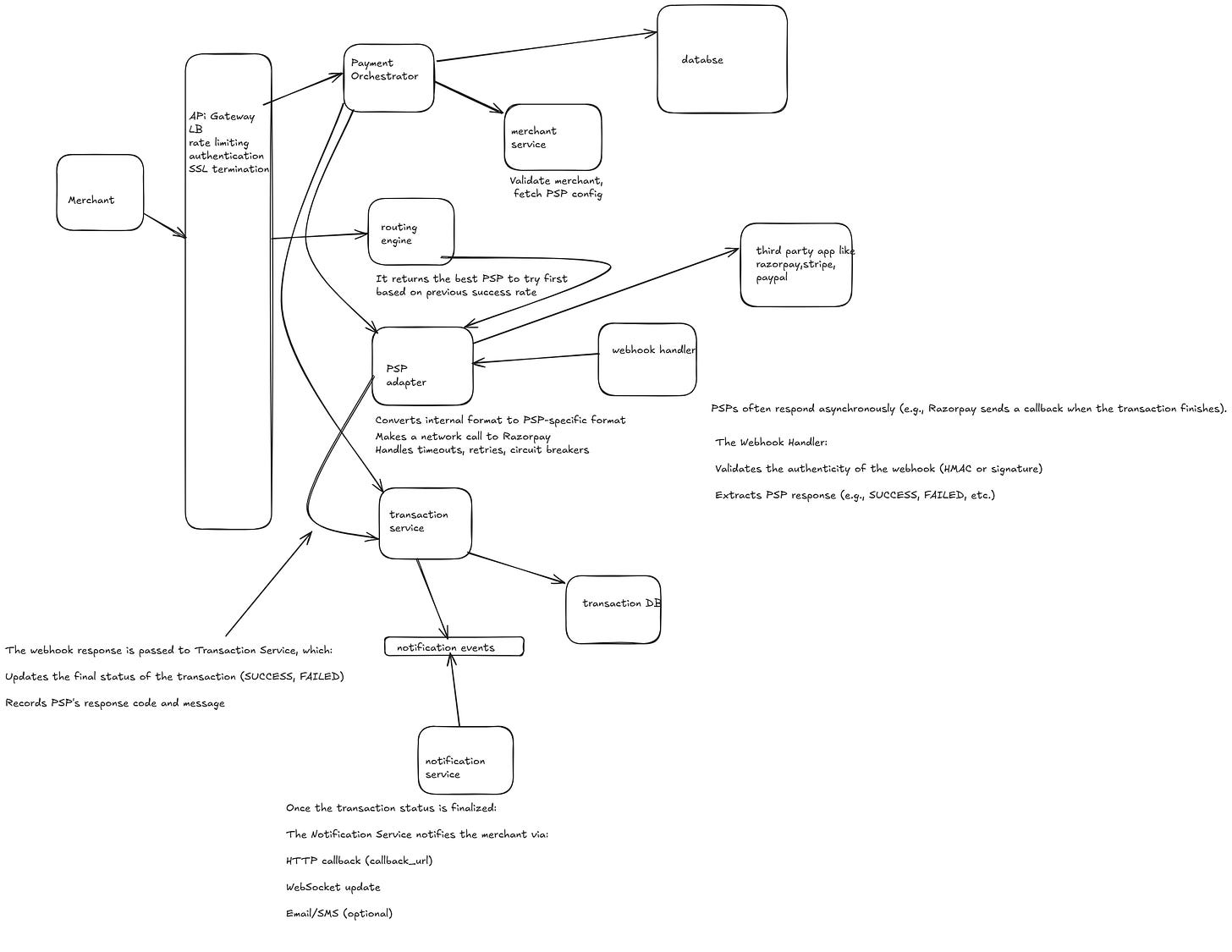

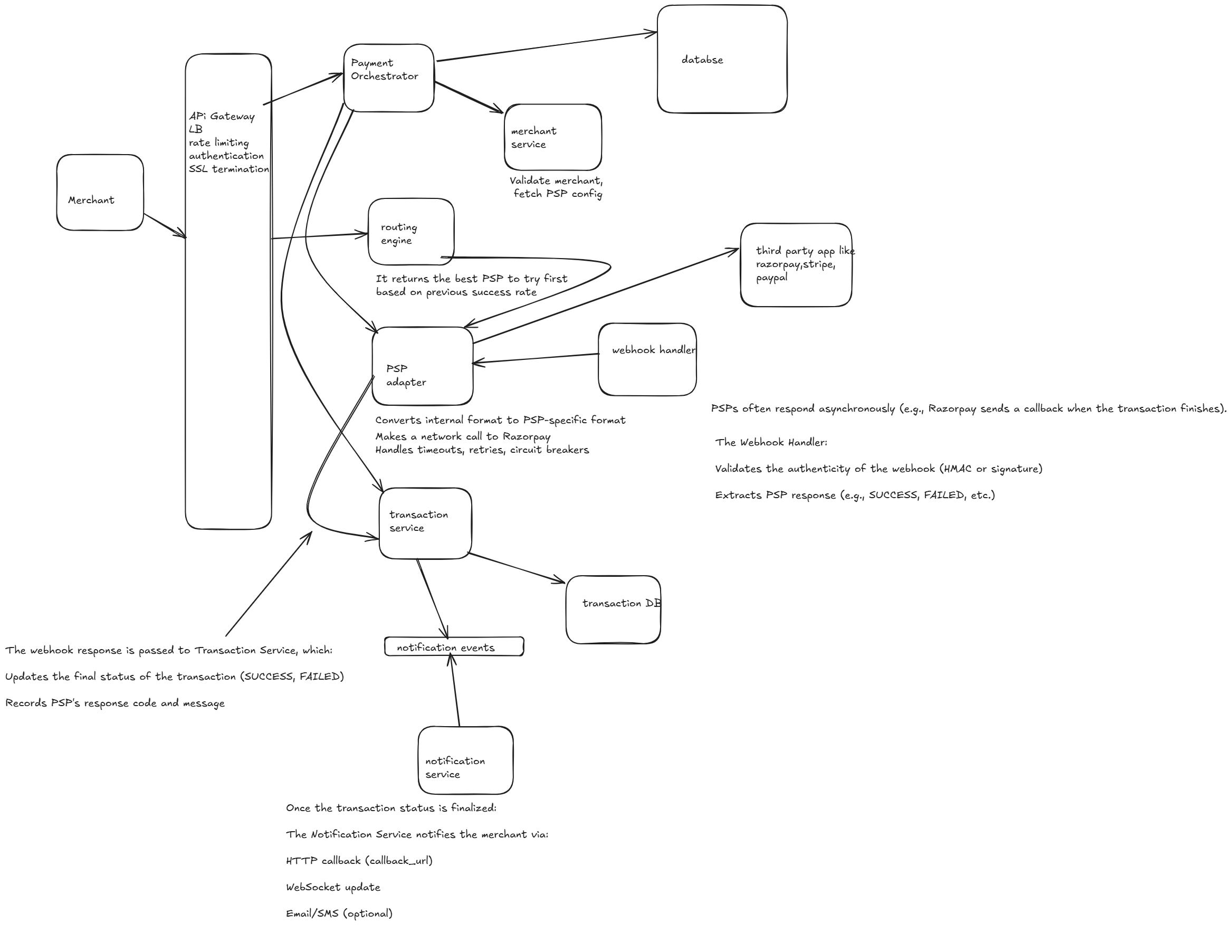

🔁 Service Interaction Diagram

Sequence: Payment Initiation Flow

[Merchant] → [API Gateway] → [Payment Orchestrator]
                           ↘
                            → [Merchant Service] → Validate merchant, fetch PSP config
                            → [Routing Engine] → Decide best PSP
                            → [PSP Adapter: Razorpay] (1st attempt)
                               ↘
                                 → [Transaction Service] → Log attempt
                                 → [Audit Service] → Log routing and PSP status
                                 → [Webhook Handler] (PSP async callback)
                                    → [Transaction Service] → Update final status
                                    → [Notification Service] → Notify merchant

🧠 Routing Engine Logic

Maintains:
- Real-time PSP health (via Analytics Service)
- Per-merchant PSP weights
- BIN-level & geo-based routing hints
Returns: best ranked PSP, and fallback list

🧾 Reconciliation Flow

[Reconciliation Service] → [Transaction Service] → Get all daily transactions
                       → [PSP Adapter] → Pull PSP-side reports
                       → Compare & generate settlement report
                       → Update [Settlements DB]
                       → Notify merchants

📊 Analytics Flow

Receives event stream (e.g., Kafka) from:
- Transaction outcomes
- Webhook responses
- PSP Adapter latencies
Aggregates PSP stats: success %, latency, failure trends
Pushes summary data to Redis/DynamoDB for Routing Engine

🔐 Security & Reliability Considerations

Idempotency keys for payment APIs
Circuit breakers in PSP adapters
Rate limiting at API Gateway
Retries with exponential backoff
Chaos testing for PSP failures

⚙️ Deployment Notes

All services should be:
- Containerized (Docker)
- Deployed via Kubernetes
- Use Service Mesh (e.g., Istio) for observability and resilience

✅ Step-by-Step Explanation

1. [Merchant] → [API Gateway]

The merchant’s system makes an HTTPS POST /payments/initiate call.
The API Gateway performs:
- Authentication (via API key or OAuth)
- Rate limiting
- Routing the request to internal microservices

2. → [Payment Orchestrator]

The Payment Orchestrator is the brain of the operation.
It manages:
- Overall state of the transaction
- Coordination of retries and PSP switching
- Timeout handling

3. → [Merchant Service]

The Orchestrator calls the Merchant Service to:
- Validate the merchant_id, check if it is active.
- Retrieve PSP configuration:
  - Preferred PSPs (e.g., Razorpay, PayU)
  - PSP weights or priorities
  - Retry policy (e.g., how many fallbacks allowed)

4. → [Routing Engine]

The Routing Engine uses:
- Real-time success rate of each PSP
- Merchant-specific preferences
- BIN-based and geo-specific heuristics
It returns the best PSP to try first (e.g., Razorpay) and a fallback list.

5. → [PSP Adapter: Razorpay]

The Orchestrator forwards the transaction request to the PSP Adapter (e.g., Razorpay).
PSP Adapter is a microservice or SDK wrapper that:
- Converts internal format to PSP-specific format
- Makes a network call to Razorpay
- Handles timeouts, retries, circuit breakers

6. → [Transaction Service]

As soon as the attempt is initiated, the Transaction Service:
- Creates a transaction_id
- Stores initial metadata: amount, PSP used, merchant ID
- Status is set to PENDING

7. → [Audit Service]

Logs metadata like:
- Which PSP was selected
- Latency
- Retry history
- Any routing decisions
Useful for debugging, analytics, and compliance audits.

8. → [Webhook Handler]

PSPs often respond asynchronously (e.g., Razorpay sends a callback when the transaction finishes).
The Webhook Handler:
- Validates the authenticity of the webhook (HMAC or signature)
- Extracts PSP response (e.g., SUCCESS, FAILED, etc.)

9. → [Transaction Service] (again)

The webhook response is passed to Transaction Service, which:
- Updates the final status of the transaction (SUCCESS, FAILED)
- Records PSP's response code and message

10. → [Notification Service]

Once the transaction status is finalized:
- The Notification Service notifies the merchant via:
  - HTTP callback (callback_url)
  - WebSocket update
  - Email/SMS (optional)
The merchant uses this update to show success/failure to the end customer.

🔁 If Failure Occurs

If the PSP Adapter call:

fails (timeout, error code) or
the webhook indicates failure (e.g., payment declined)

Then:

Payment Orchestrator consults Routing Engine again
Picks the next best PSP from the fallback list
Repeats steps 5–10
Tracks retry count to avoid infinite loops

🔁 Transaction Service Invocation Points

✅ 1. Initial Invocation – by Payment Orchestrator

When?
Right before the first call to the PSP Adapter is made.

Why?
To:

Create a new transaction record
Set initial status = PENDING
Store metadata: merchant_id, order_id, amount, chosen PSP, etc.

How?

[Payment Orchestrator] → [Transaction Service]

✅ 2. Post PSP Response – by PSP Adapter

When?
Immediately after receiving a synchronous PSP response (if the PSP supports sync flow).

Why?

To update status: SUCCESS or FAILED
Log PSP-specific fields: response code, transaction_ref_id

How?

[PSP Adapter] → [Transaction Service]

✅ 3. Webhook Callback – by Webhook Handler

When?
After receiving an asynchronous webhook from the PSP.

Why?

Update the final status of the transaction (if not already final)
Capture failure reasons, timestamps, PSP IDs

How?

[Webhook Handler] → [Transaction Service]

✅ 4. Retry Flow – by Payment Orchestrator

When?
If a PSP fails and a retry is initiated with a fallback PSP.

Why?

Update the existing transaction with:
- New retry count
- PSP fallback attempted
- Time of retry
Avoid creating a new transaction; append retry details to the same record.

How?

[Payment Orchestrator] → [Transaction Service]

HLD

Shashank’s Substack

Discussion about this post

Shashank’s Substack

Designing a Payment Aggregator with a high transaction success rate involves handling multiple Payment Service Providers (PSPs), optimizing routing, retry mechanisms, and fault tolerance.

Let's look into FR

6.POST /api/v1/payments/webhook

8.GET /api/v1/routing/suggestion

GET /api/v1/admin/psps/health

✅ 2. merchant_psp_config

✅ 3. transactions Table

✅ 4. psp_metrics (Real-time stats store, e.g., Redis or DynamoDB)

✅ 6. psps Table

🔁 TTL and Cleanup Strategy

🔁 Service Interaction Diagram

Sequence: Payment Initiation Flow

🧠 Routing Engine Logic

📊 Analytics Flow

🔐 Security & Reliability Considerations

⚙️ Deployment Notes

✅ Step-by-Step Explanation

1. [Merchant] → [API Gateway]

2. → [Payment Orchestrator]

3. → [Merchant Service]

4. → [Routing Engine]

5. → [PSP Adapter: Razorpay]

6. → [Transaction Service]

7. → [Audit Service]

8. → [Webhook Handler]

9. → [Transaction Service] (again)

10. → [Notification Service]

🔁 If Failure Occurs

🔁 Transaction Service Invocation Points

✅ 1. Initial Invocation – by Payment Orchestrator

✅ 2. Post PSP Response – by PSP Adapter

✅ 3. Webhook Callback – by Webhook Handler

✅ 4. Retry Flow – by Payment Orchestrator

Discussion about this post

`6.POST /api/v1/payments/webhook`

`8.GET /api/v1/routing/suggestion`

`GET /api/v1/admin/psps/health`

✅ 2. `merchant_psp_config`

✅ 3. `transactions` Table

✅ 4. `psp_metrics` (Real-time stats store, e.g., Redis or DynamoDB)

✅ 6. `psps` Table
