HLD: Aggregation System for Vending Machines

Let's look into functional requriement

FR

1.The system should allow registering a new vending machine.

2.The system should maintain a catalog of products per vending machine

3.The system should collect sales events from vending machines in near real time.

4.The system should aggregate sales data at different levels:

• Per vending machine

• Per location

• Per product

• Per time window (hour/day/week/month)

5.The system should calculate:

• Total revenue per machine

• Revenue per product

• Revenue per location

6.The system should automatically detect:

• Low stock conditions

• Out-of-stock products

• Expired products

7.The system should ingest machine telemetry data such as:

• Power status

• Temperature

• Door open/close

• Network connectivity

NFR

1.System should be highly scalable to support millions of machines and thousands of events per region.

2.System should be highly available

3.System should be fault tolerant

4.Event ingestion latency should be <200ms, near real time aggregation should be <5ms.

5.Transactional data must be strongly consistent across all vending machines,aggregated metrics may be eventually consistent.

6.System should be highly durbale

API’s

API Design – Vending Machine Aggregation System

1. Authentication & Authorization

(All APIs require auth unless mentioned)

POST /auth/token

• Issues access token for machines or users

request {
  "client_id": "machine_123",
  "client_secret": "******",
  "grant_type": "client_credentials"
}
response
{
  "access_token": "jwt-token",
  "expires_in": 3600
}

2. Vending Machine Management APIs

POST /machines

Register a new vending machine

{
  "machineId": "VM_1001",
  "location": {
    "city": "Bangalore",
    "building": "Tech Park A",
    "lat": 12.9716,
    "lng": 77.5946
  },
  "paymentMethods": ["CASH", "CARD", "UPI"]
}

GET /machines/{machineId}

Fetch machine details

---

PATCH /machines/{machineId}

Update machine metadata or status

{
  "status": "UNDER_MAINTENANCE"
}

DELETE /machines/{machineId}

Decommission machine

3. Product & Inventory APIs

POST /machines/{machineId}/products

Add product to machine

{
  "productId": "P100",
  "name": "Coke",
  "price": 50,
  "quantity": 30,
  "expiryDate": "2025-06-01"
}

PATCH /machines/{machineId}/products/{productId}

Update price or stock

{
  "price": 55,
  "quantity": 25
}

GET /machines/{machineId}/inventory

Fetch current inventory state

4. Sales / Transaction Ingestion APIs

(High-throughput, machine-facing)

POST /events/sales

Ingest sale event
(Idempotent API)

Headers

Idempotency-Key: txn_12345

request
{
  "transactionId": "txn_12345",
  "machineId": "VM_1001",
  "productId": "P100",
  "quantity": 1,
  "amount": 50,
  "paymentMethod": "UPI",
  "timestamp": "2025-01-10T10:15:30Z"
}
response
{
  "status": "ACCEPTED"
}

POST /events/batch

Batch ingestion (for offline buffering machines)

{
  "events": [ {...}, {...} ]
}

5. Machine Telemetry APIs

POST /events/telemetry

Ingest telemetry data

{
  "machineId": "VM_1001",
  "temperature": 5.4,
  "powerStatus": "ON",
  "doorStatus": "CLOSED",
  "timestamp": "2025-01-10T10:16:00Z"
}

6. Fault & Incident APIs

POST /events/faults

Report machine fault

{
  "machineId": "VM_1001",
  "faultType": "PAYMENT_FAILURE",
  "description": "Card reader not responding",
  "timestamp": "2025-01-10T10:17:00Z"
}

GET /faults?status=OPEN&city=Bangalore

List active faults

---

PATCH /faults/{faultId}

Update fault status

{
  "status": "RESOLVED"
}

Databases and their Schema

1. Core Metadata Tables

vending_machines

CREATE TABLE vending_machines (
    machine_id        VARCHAR(64) PRIMARY KEY,
    city              VARCHAR(64),
    building          VARCHAR(128),
    latitude          DECIMAL(9,6),
    longitude         DECIMAL(9,6),
    status            VARCHAR(32), -- ACTIVE, INACTIVE, MAINTENANCE
    created_at        TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    updated_at        TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

products

(Global product catalog)

CREATE TABLE products (
    product_id        VARCHAR(64) PRIMARY KEY,
    name              VARCHAR(128),
    created_at        TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

machine_inventory

(Product state per machine)

CREATE TABLE machine_inventory (
    machine_id        VARCHAR(64),
    product_id        VARCHAR(64),
    price             DECIMAL(10,2),
    quantity          INT,
    expiry_date       DATE,
    low_stock_limit   INT DEFAULT 5,
    updated_at        TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    PRIMARY KEY (machine_id, product_id),
    FOREIGN KEY (machine_id) REFERENCES vending_machines(machine_id),
    FOREIGN KEY (product_id) REFERENCES products(product_id)
);

2. Event Tables (Append-Only)

sales_events

(Raw immutable sales events)

CREATE TABLE sales_events (
    transaction_id    VARCHAR(64) PRIMARY KEY,
    machine_id        VARCHAR(64),
    product_id        VARCHAR(64),
    quantity          INT,
    amount            DECIMAL(10,2),
    payment_method    VARCHAR(32),
    event_time        TIMESTAMP,
    created_at        TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

telemetry_events

CREATE TABLE telemetry_events (
    id                BIGSERIAL PRIMARY KEY,
    machine_id        VARCHAR(64),
    temperature       DECIMAL(5,2),
    power_status      VARCHAR(32),
    door_status       VARCHAR(32),
    event_time        TIMESTAMP
);

fault_events

CREATE TABLE fault_events (
    fault_id          BIGSERIAL PRIMARY KEY,
    machine_id        VARCHAR(64),
    fault_type        VARCHAR(64),
    description       TEXT,
    status            VARCHAR(32), -- OPEN, RESOLVED
    event_time        TIMESTAMP,
    resolved_at       TIMESTAMP
);

3. Aggregated Tables (Pre-Computed)

daily_machine_sales

CREATE TABLE daily_machine_sales (
    machine_id        VARCHAR(64),
    sales_date        DATE,
    total_transactions INT,
    total_quantity     INT,
    total_revenue      DECIMAL(12,2),
    PRIMARY KEY (machine_id, sales_date)
);

daily_product_sales

CREATE TABLE daily_product_sales (
    product_id        VARCHAR(64),
    sales_date        DATE,
    total_quantity    INT,
    total_revenue     DECIMAL(12,2),
    PRIMARY KEY (product_id, sales_date)
);

daily_location_sales

CREATE TABLE daily_location_sales (
    city              VARCHAR(64),
    sales_date        DATE,
    total_revenue     DECIMAL(12,2),
    PRIMARY KEY (city, sales_date)
);

4. Alerts & Monitoring

alerts

CREATE TABLE alerts (
    alert_id          BIGSERIAL PRIMARY KEY,
    machine_id        VARCHAR(64),
    product_id        VARCHAR(64),
    alert_type        VARCHAR(64), -- LOW_STOCK, OUT_OF_STOCK
    status            VARCHAR(32), -- OPEN, CLOSED
    created_at        TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

5. Users & Access Control

users

CREATE TABLE users (
    user_id           BIGSERIAL PRIMARY KEY,
    name              VARCHAR(128),
    role              VARCHAR(32), -- ADMIN, OPS, FINANCE
    created_at        TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

6. Audit Logs

audit_logs

CREATE TABLE audit_logs (
    id                BIGSERIAL PRIMARY KEY,
    entity_type       VARCHAR(64),
    entity_id         VARCHAR(64),
    action            VARCHAR(64),
    performed_by      VARCHAR(64),
    performed_at      TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

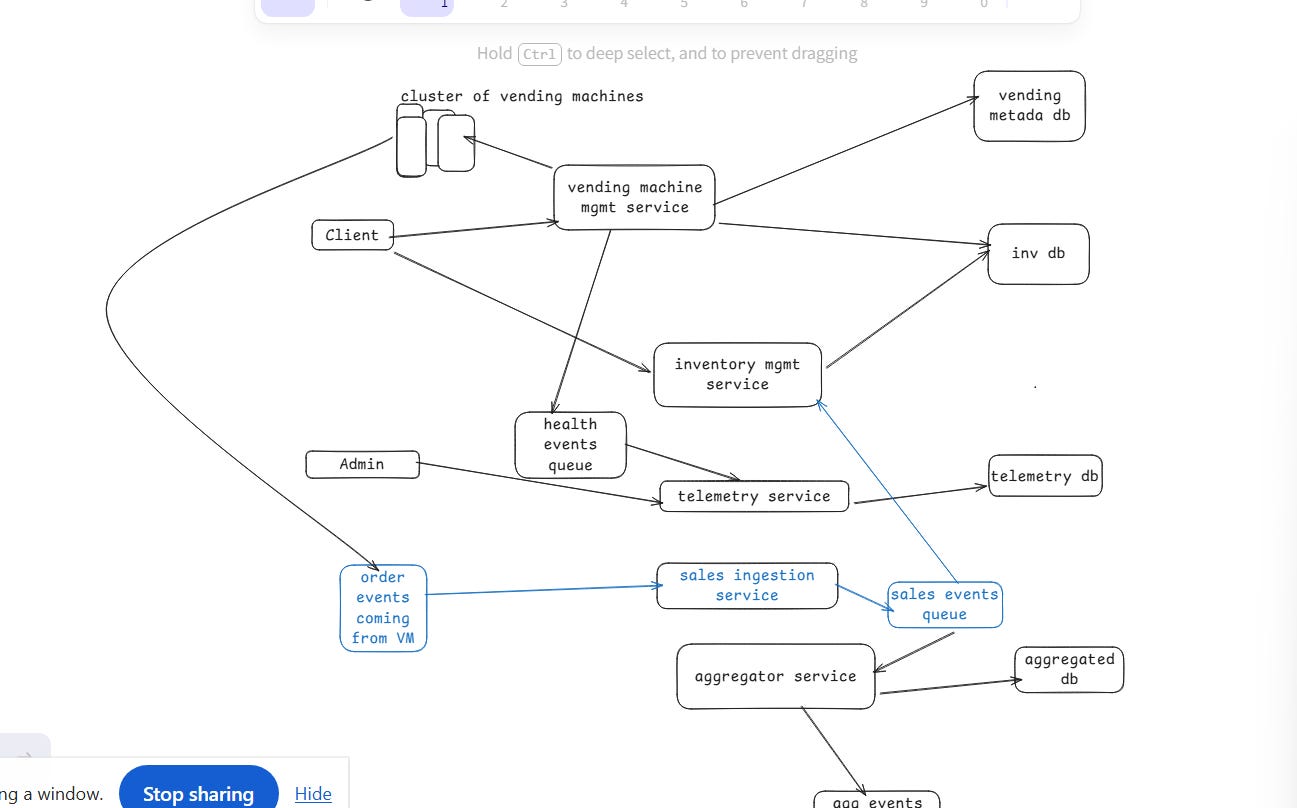

Microservices Architecture – Vending Machine Aggregation System

1. Microservices Breakdown

1. Machine Management Service

Responsibility

• Register / update / decommission vending machines

• Maintain machine metadata (location, status)

Owns DB

• vending_machines

APIs

• POST /machines

• GET /machines/{id}

• PATCH /machines/{id}

---

2. Product & Inventory Service

Responsibility

• Manage product catalog

• Track inventory per machine

• Update stock on sales

Owns DB

• products

• machine_inventory

APIs

• POST /machines/{id}/products

• PATCH /machines/{id}/products/{pid}

• GET /machines/{id}/inventory

---

3. Sales Ingestion Service

Responsibility

• High-throughput ingestion of sales events

• Idempotency & validation

• Push events to event stream

Owns DB

• sales_events (raw)

APIs

• POST /events/sales

• POST /events/batch

Publishes Events

• sales-events topic

---

4. Telemetry Service

Responsibility

• Ingest machine health metrics

• Track online/offline status

Owns DB

• telemetry_events

APIs

• POST /events/telemetry

Publishes Events

• telemetry-events topic

---

5. Fault Management Service

Responsibility

• Record machine faults

• Track fault lifecycle

Owns DB

• fault_events

APIs

• POST /events/faults

• GET /faults

• PATCH /faults/{id}

---

6. Aggregation Service

Responsibility

• Consume raw events

• Compute time-windowed aggregations

• Maintain pre-computed views

Owns DB

• daily_machine_sales

• daily_product_sales

• daily_location_sales

Consumes Topics

• sales-events

---

7. Analytics & Query Service

Responsibility

• Serve read-heavy analytical queries

• Query pre-aggregated data only

Owns DB

• Read-only access to aggregation tables

APIs

• GET /aggregations/sales

• GET /aggregations/products/top

---

8. Alerting Service

Responsibility

• Detect low stock, offline machines

• Generate alerts

Consumes Topics

• sales-events

• telemetry-events

Owns DB

• alerts

---

9. Reporting Service

Responsibility

• Generate daily/monthly reports

• Export CSV / JSON

APIs

• GET /reports/*

• POST /reports/export

---

10. User & Auth Service

Responsibility

• Authentication & RBAC

• Issue access tokens

Owns DB

• users

---

11. Audit Service

Responsibility

• Record system & user actions

• Compliance & traceability

Owns DB

• audit_logs

---

Service Interaction (End-to-End Flows)

---

Flow 1: Sale Happens on Vending Machine

Vending Machine
    ↓
Sales Ingestion Service
    ↓ (persist raw event)
sales_events table
    ↓
Publish → sales-events topic

Downstream consumers:

Aggregation Service  → updates daily_* tables
Inventory Service    → decrements stock
Alerting Service     → checks low stock

➡️ No synchronous calls between services

---

Flow 2: Inventory Update

Inventory Service
    ↓
Update machine_inventory
    ↓
Emit inventory-updated event (optional)

---

Flow 3: Machine Telemetry

Vending Machine
    ↓
Telemetry Service
    ↓
telemetry-events topic
    ↓
Alerting Service → offline alerts

---

Flow 4: Analytics Query

Client / Dashboard
    ↓
Analytics Service
    ↓
Query pre-aggregated tables
    ↓
Fast response (<2s)

---

Flow 5: Fault Reporting

Vending Machine
    ↓
Fault Service
    ↓
fault_events
    ↓
Maintenance Dashboard

---

Communication Patterns Used

Interaction TypePatternMachine → BackendREST (HTTP)Service → ServiceEvent-driven (Kafka)AggregationsAsync consumersQueriesCQRS (read vs write separation)

---

Why This Design Works (Interview Explanation)

• High ingestion throughput → no sync dependencies

• Event-driven → easy to add new consumers

• Strong isolation → each service owns its DB

• Eventually consistent aggregations

• Easy reprocessing from raw events

“I keep ingestion, aggregation, and querying decoupled using event streams. That allows independent scaling and avoids cascading failures.”

---

Optional Enhancements (If Interviewer Pushes)

• Kafka partitioned by machine_id

• Exactly-once aggregation using offsets + idempotent writes

• OLAP store (ClickHouse / Druid) for analytics

• gRPC for internal service calls
