Summary of the paper, Zanzibar: Google’s Consistent, Global Authorization System

Zanzibar is a high-performance, planet-scale authorization system designed by Google to manage access control for millions of users across thousands of services. It is described in the research paper

Problem Statement

Modern applications require flexible, fine-grained access control that supports hierarchical and relational data structures. Building a scalable, low-latency authorization system to handle billions of access requests across multiple services is a challenging problem.

Goals

1. Consistency: Provide strong guarantees so that permissions are always evaluated correctly.

2. Scalability: Support millions of queries per second at low latency.

3. Flexibility: Allow fine-grained access control policies for diverse use cases across different services.

4. Ease of Use: Simplify policy management for service developers.

---

Key Concepts and Components

1. Tuple-Based Data Model
   Zanzibar represents access control relationships as "tuples" of the form:

object#relation@user

For example:document:123#viewer@user:alice means Alice is a viewer of document 123.

1. Namespace Configuration
   Defines schema and rules for each object type. It is used to manage policies like inheritance or group memberships. For example, a folder might inherit permissions from its parent.

2. Consistency Model
   Zanzibar uses Per-Request Snapshot Consistency, which ensures that every authorization query observes a consistent snapshot of the data at a specific timestamp.

3. Caching
   Zanzibar employs aggressive caching at multiple levels (edge servers, datacenters) to minimize latency and reduce load on the storage system.

4. Global Distribution
   Zanzibar operates on a globally distributed infrastructure to serve low-latency queries from anywhere in the world.

5. Change Propagation
   Changes in access control policies are propagated through a globally distributed changelog. Services observe these changes in near real-time.

6. APIs
   Zanzibar provides APIs for:

   • Writing tuples (managing access control policies)

   • Reading tuples (to understand access relationships)

   • Performing authorization checks (e.g., "Can user X perform action Y on object Z?")

---

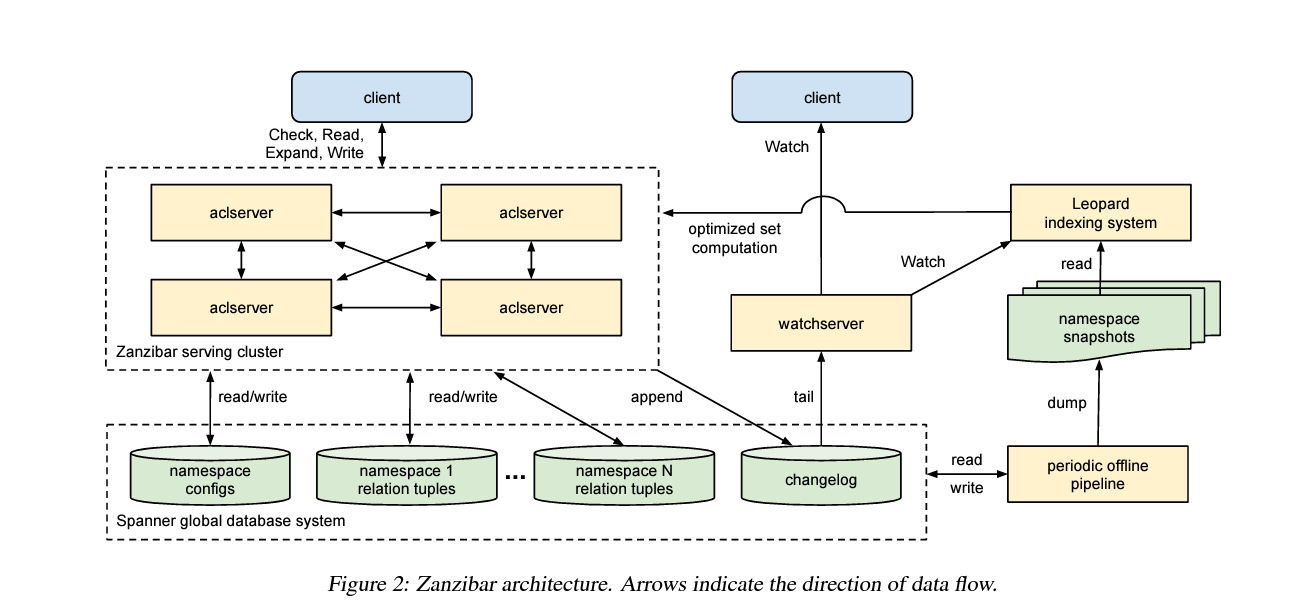

Architecture

1. Storage System
   Zanzibar uses Spanner, Google’s distributed SQL database, for reliable and consistent storage of access control data.

2. Caching Layers

   • Content Cache: Stores frequently accessed tuples.

   • Lookup Cache: Caches authorization results for specific queries.

3. Distributed Execution
   Requests are routed to the nearest edge server. If the request cannot be resolved via caching, it queries the backend data store.

---

Strengths

1. Handles fine-grained access control at a massive scale.

2. Ensures strong consistency, even across a globally distributed system.

3. Reduces complexity for developers by abstracting policy management.

4. Highly performant with low query latencies.

---

Use Cases

Zanzibar powers many Google products such as YouTube, Google Drive, and Photos, enabling features like sharing and access permissions.

---

Challenges

1. Balancing strong consistency with low latency.

2. Managing access control for complex hierarchical structures.

3. Propagating changes in near real-time while ensuring global consistency.

---

Impact

Zanzibar has influenced the design of modern access control systems. Open-source implementations inspired by Zanzibar, like OpenFGA and Authzed, are widely adopted.

By abstracting access control into a centralized, scalable service, Zanzibar has set a benchmark for authorization systems in modern distributed applications.

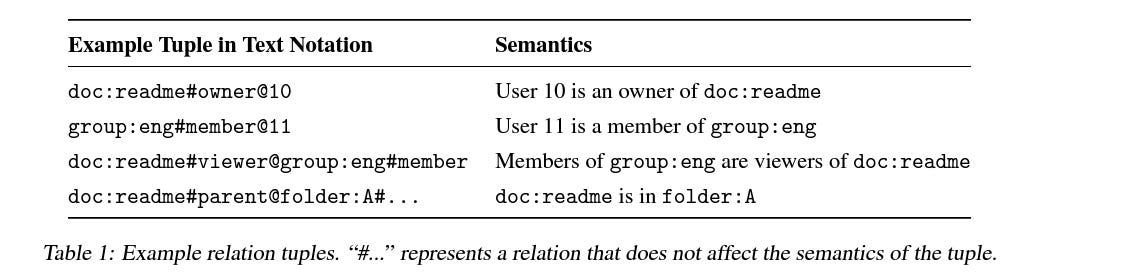

1. Data Model: Tuple-Based Representation

Zanzibar represents access control relationships in a tuple-based data model, where each tuple is structured as:

object#relation@user

• Object: Represents the resource (e.g., document:123, folder:abc).

• Relation: Specifies the type of access (e.g., viewer, editor, owner).

• User: Specifies the principal who has the relation (e.g., user:alice, group:marketing).

Advanced Examples

• Direct Relationship:
  document:123#viewer@user:alice
  → Alice is a viewer of document 123.

• Group Membership:
  group:marketing#member@user:bob
  → Bob is a member of the "marketing" group.

• Inherited Permission:
  A folder may inherit permissions from its parent. For example:

folder:root#viewer@user:charlie
folder:root#viewer@folder:child

• Here, if folder:child inherits the viewer role from its parent (folder:root), Charlie can view any child folder.

• Transitive Relationships:
  Group memberships or hierarchies can form transitive relationships:

document:123#viewer@group:marketing
group:marketing#member@user:bob

This implies Bob can view document 123 because he is a member of the marketing group.

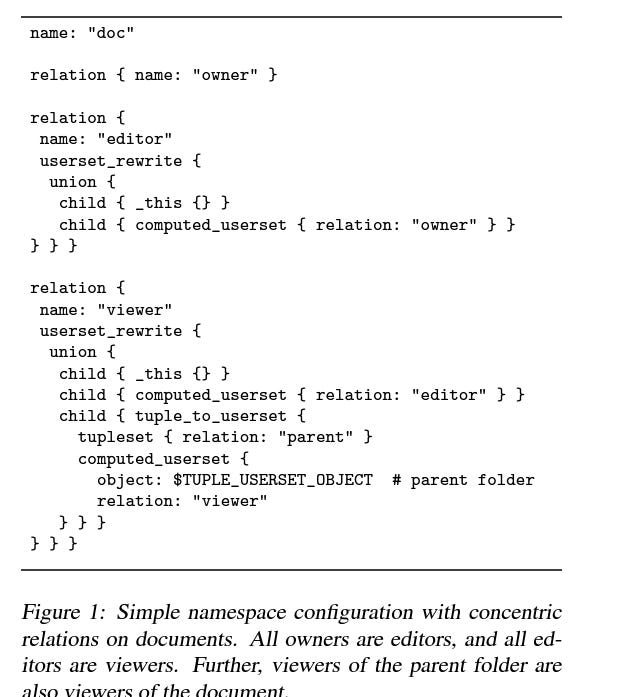

2. Namespace Configuration

Namespaces in Zanzibar define the schema, rules, and semantics for objects and relations. It serves as a blueprint for managing access control policies for specific object types.

Key Features of Namespace Configuration

1. Relations and Permissions
   Relations can be mapped to explicit permissions. For example:

   • editor implies viewer.

   • owner implies editor.

2. Computed Permissions
   Relationships can be dynamically resolved using set operations like union or intersection. For example:

permission viewer = union {
  relation viewer,
  permission editor,
}

• This means that if a user is an editor, they are automatically considered a viewer.

• Inheritance
  Define parent-child relationships (e.g., files inherit permissions from folders).

3. Consistency Model: Per-Request Snapshot Consistency

What is Per-Request Snapshot Consistency?

Zanzibar ensures that every access check observes a consistent snapshot of the system's state. Even in the face of concurrent updates, Zanzibar provides a stable and reliable view of permissions for the duration of a request.

• Key Advantage: Clients are guaranteed not to see partially applied updates or stale data.

• Implementation:

  • Snapshots are achieved using timestamps from Spanner, Google's distributed database.

  • Queries for access checks specify a snapshot timestamp, ensuring the evaluation is consistent with the state of the system at that point.

Challenge of Consistency

• Propagating changes globally while maintaining snapshot consistency is non-trivial.

• Zanzibar achieves this via:

  • A changelog to propagate updates.

  • Caching to reduce the load on Spanner while preserving consistency guarantees.

---

4. Change Propagation and Global Distribution

Zanzibar supports near real-time updates to access control policies while ensuring consistency across the globe.

Changelog System

• Every update to a tuple (e.g., adding or removing a permission) is appended to a changelog.

• Services subscribed to the changelog are notified to update their caches or re-evaluate permissions as needed.

Global Distribution

• Zanzibar is designed to serve low-latency requests across the globe.

• To achieve this, it uses:

  • Edge Caching: Stores frequently accessed data close to users.

  • Region Replication: Replicates data across multiple datacenters using Spanner.

---

5. Caching Layers

Caching is critical for Zanzibar’s low-latency performance. It uses multiple caching layers:

1. Content Cache

   • Caches tuples (e.g., document:123#viewer@user:alice).

   • Reduces load on the backend storage.

2. Lookup Cache

   • Caches the results of specific authorization checks (e.g., "Can Alice view document 123?").

   • Optimized for high-speed query resolution.

Cache Expiry

• Caches are invalidated when changes are propagated through the changelog system.

• Snapshot consistency ensures that stale cache entries are avoided during query execution.

---

6. Query Execution

The core operation in Zanzibar is the authorization check, which evaluates whether a user has a specific relation with an object.

Steps in Query Execution

1. Parse the Query
   For example: "Can Alice view document 123?"

2. Check Caches

   • Lookup cache: If the result is cached, return it immediately.

   • Content cache: If the necessary tuples are cached, evaluate the query locally.

3. Backend Query
   If the result isn’t cached, the query is executed against the Spanner backend, using the namespace configuration to resolve permissions.

4. Return Result
   The result is cached for future queries.

---

7. Scalability

Zanzibar is designed to handle planet-scale authorization by:

1. Sharding Access Control Data

   • Tuples are sharded across Spanner instances to distribute load.

2. Aggressive Caching

   • By caching frequently accessed data at multiple levels, Zanzibar minimizes backend queries.

3. Efficient Query Planning

   • Complex queries are optimized using namespace rules and pre-computed relationships.

---

8. Open Challenges

Although Zanzibar achieves significant scalability and flexibility, it has some inherent challenges:

1. Latency-Sensitive Scenarios

   • Real-time updates may still experience propagation delays due to the changelog system.

2. Complex Policies

   • Highly nested or deeply hierarchical policies can result in complex queries, which may strain performance.

3. Debugging and Monitoring

   • Managing and debugging fine-grained access control rules for large-scale systems can be challenging.

---

Applications and Open-Source Influence

• Zanzibar inspired open-source projects like OpenFGA and Authzed, which implement similar principles.

• It is the backbone for access control in products like:

  • Google Drive: Sharing and file permissions.

  • YouTube: Video access (public/private/unlisted).

  • Photos: Album sharing and permissions.

---

By abstracting access control into a centralized system with robust guarantees, Zanzibar has redefined how modern distributed systems handle authorization. It’s a perfect balance of flexibility, scalability, and performance.

Source:-from paper itself
